CARACTÉRISTIQUES
Audio output: 8 Ω, 1.5 W loudspeaker
Brand Name: SONOFF
Camera Equipped: Oui
Central Processing Unit: Quad-Core ARM Cortex-A35 CPU
Certification: CE,RoHS
Couleur: NSPanel86PW relay: White NSPanel86PB relay: Dark gray
Communication method: Other,Zigbee
Compatibility: All Compatible
GPU: Mali G31-2EE GPU
Light sensor: Automatic brightness adjustment based on ambient light (I²C light sensor)
Microphone: Two-channel digital microphones

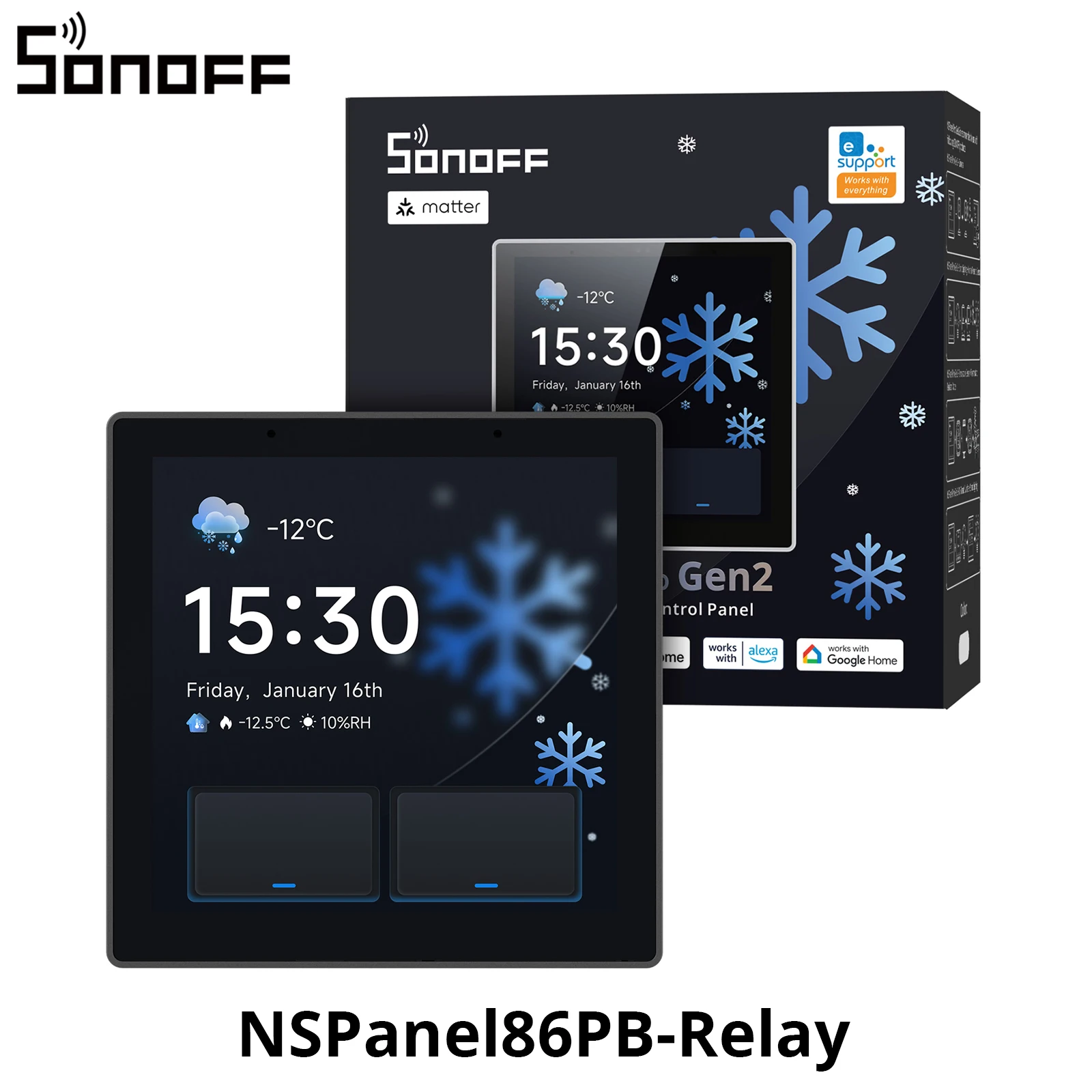

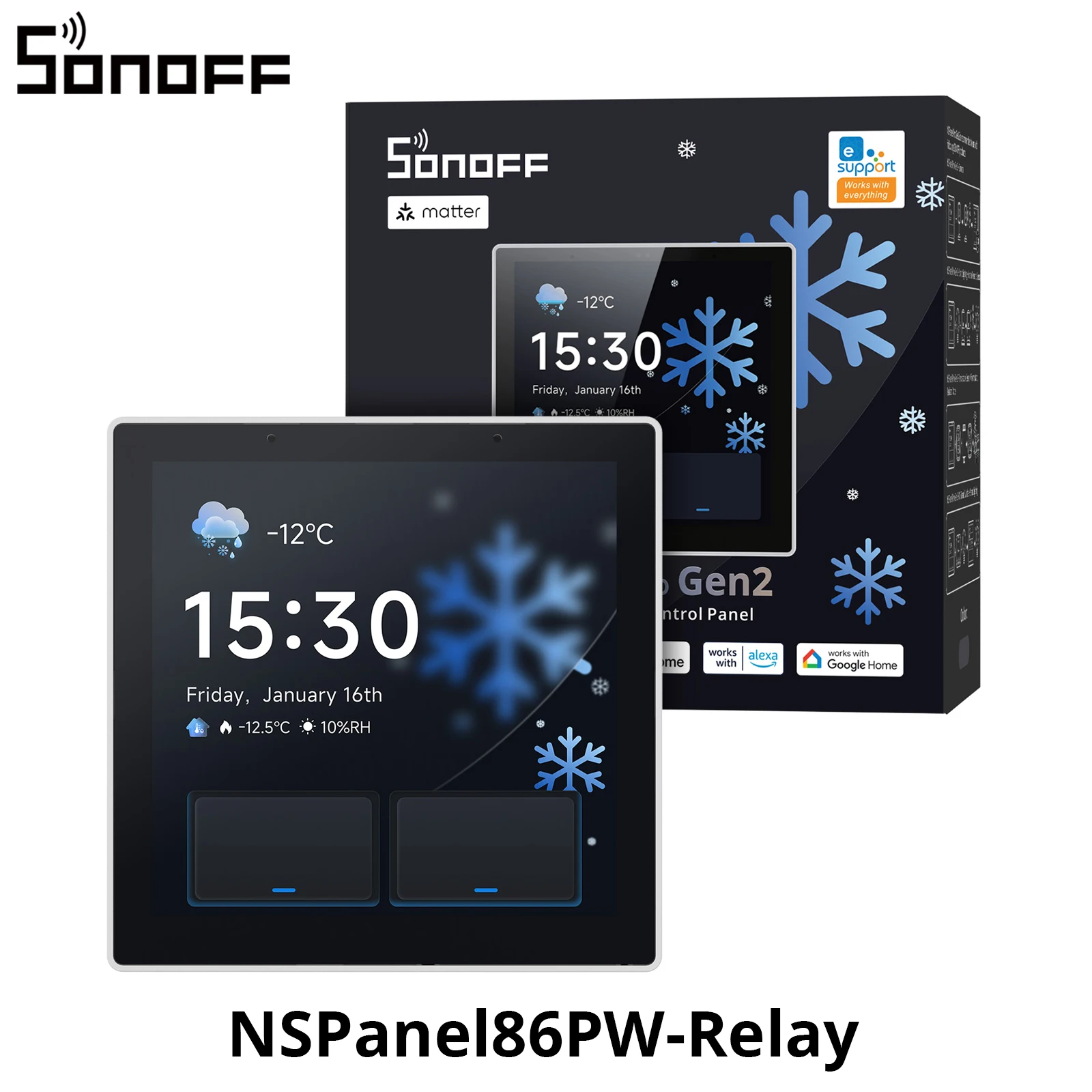

Model: NSPanel86PB-Relay/NSPanel86PW-Relay
Model Number: NSPanel86PB-Relay/NSPanel86PW-Relay
Net weight: 190g
Nominal voltage: 100-240 V, 50/60 Hz, max. 5 A/circuit, 10 A total resistor
Operating humidity: 10% to 80% relative humidity, non-condensing
Température de fonctionnement: -10 °C to 40 °C
Origin: Mainland China
Product dimensions: 86 × 86 × 39.5mm
Product line: NSPanel Pro Series
RAM: 2 GB
ROM: 32 GB
Screen resolution: 480×480
Screen size: 3.95 inches (capacitive touchscreen)
Specification: EU Plug
State of Assembly: Ready-to-Go
System on a Chip: RK3326-S
Use: others
Wireless Function: Oui
Wireless connectivity: Wi‑Fi IEEE 802.11 b/g/n/ac/ax 2.4 GHz & 5 GHz, ZigBee 3.0
housing materials: PC + CRS

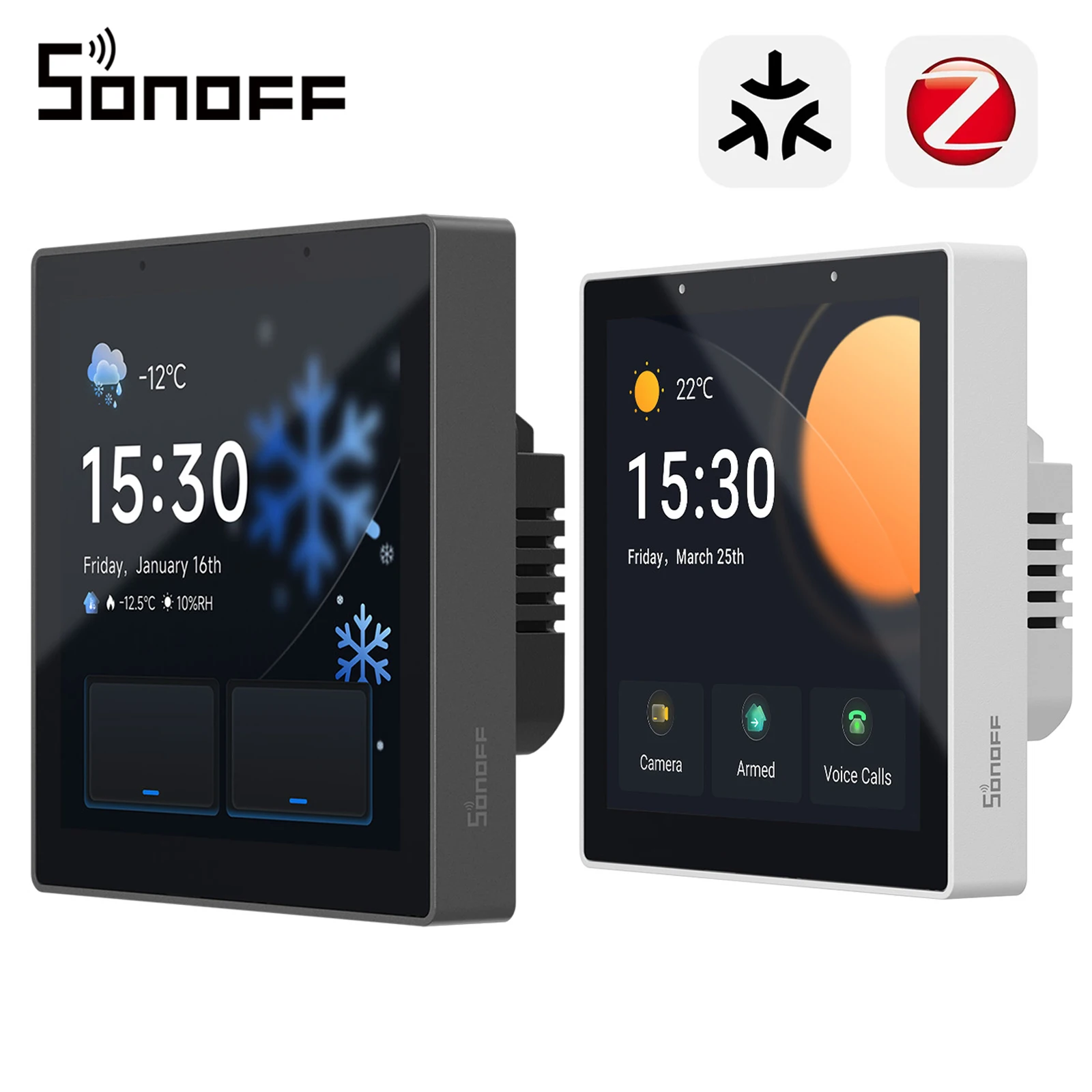

SONOFF NSPanel Pro Gen2 Smart House control panel in 86 format with dual channel relay, devices integration, compatible with Apple Home via Matter
The NSPanel Pro Gen2 is a powerful next-generation smart control panel for modern, smart living. Equipped with 2 GB of RAM and 32 GB of storage, it enables the smooth operation of Home Assistant and other apps-these can be easily installed via F-Droid, without any root access. Thanks to the integrated Matter bridge as well as Matter and Zigbee hubs, it effortlessly combines devices from different ecosystems to create a seamless overall experience. The 2-Channel relay makes upgrading existing switch a breeze without the need for rewiring. Complemented by dual-band Wi-Fi, smart temperature control and energy monitoring, it contributes to a more connected, comfortable and pleasant home.
2-Channel relay & easy retrofit. The integrated 2-Channel relay replaces conventional double light switch. Voice control via Siri, Alexa or Google Home. Compatible with standard flush storage containers with lid and existing wiring-no cost for rewiring, saves time and money.

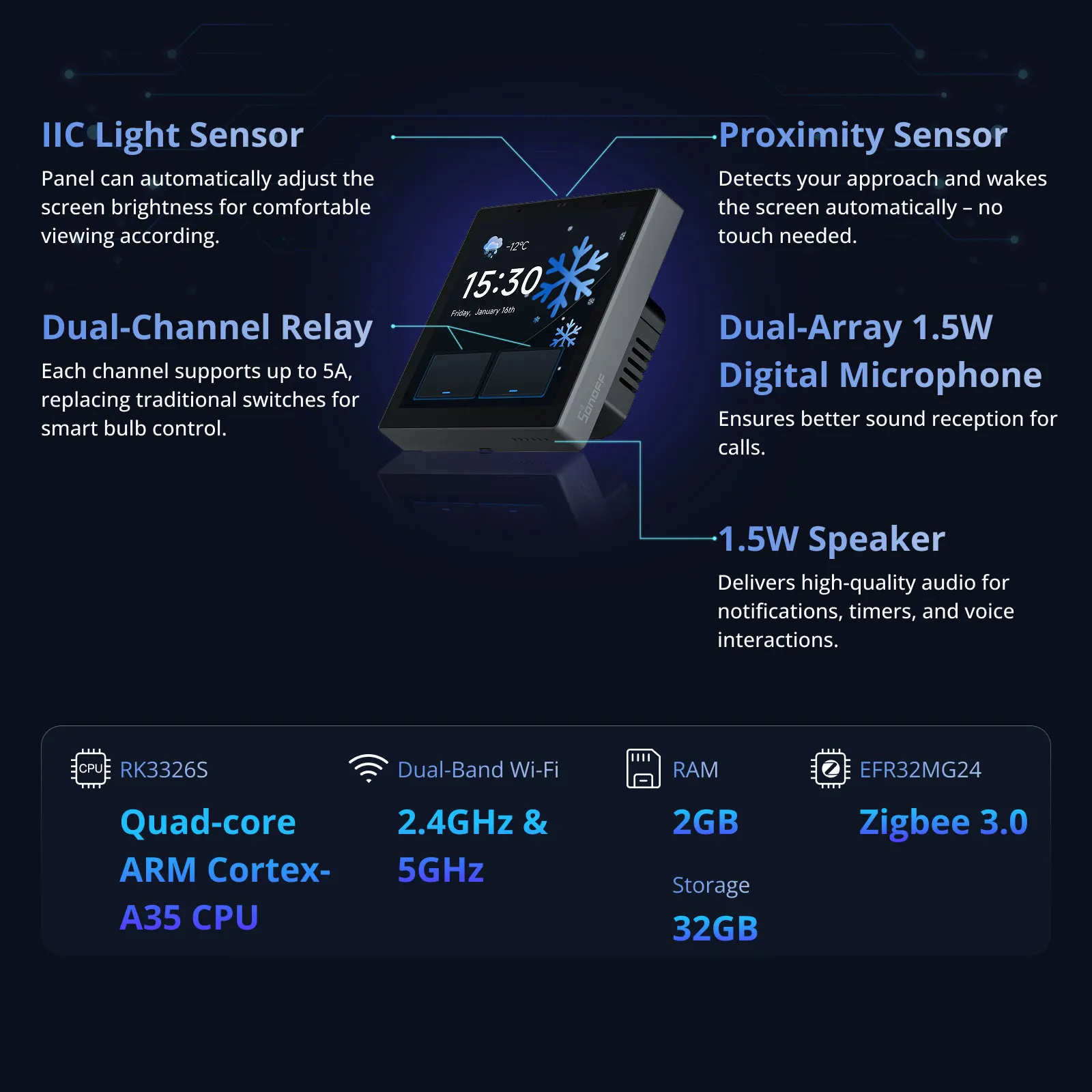

Comfort & Safety in one. Dual-band Wi-Fi, smart thermostat, energy monitoring, 1.5 W dual microphone array for precise voice control and proximity sensor for activation when approaching. Monitor the temperature, Cash Box energy and secure the home via a single screen.
Seamless home assistant Integration & app support. 2 GB RAM and 32 GB storage enable the smooth operation of several third-party apps-no root required; simply download via F-Droid and use it as a dedicated control panel for Home Assistant.
Integrated Zigbee 3.0 Gateway. Equipped with the Silicon Labs chip EFR32MG24 for the reliable networking of numerous Zigbee devices (sensors, switch, lights). Create smart scenarios and expand your home automation without additional hubs.
Matter-Bridge for universal compatibility. The integrated Matter gateway connects Zigbee and Wi-Fi devices with Apple Home, Google Home, Alexa and Home Assistant. Unite different brands and protocols for an absolutely seamless smart home experience.
NSPanel Pro Gen2 as your Home Assistant Dashboard
Download the official Home Assistant app via F-Droid, connect it to your home assistant server and enjoy the central smart home management with intuitive control at the touch of a finger.

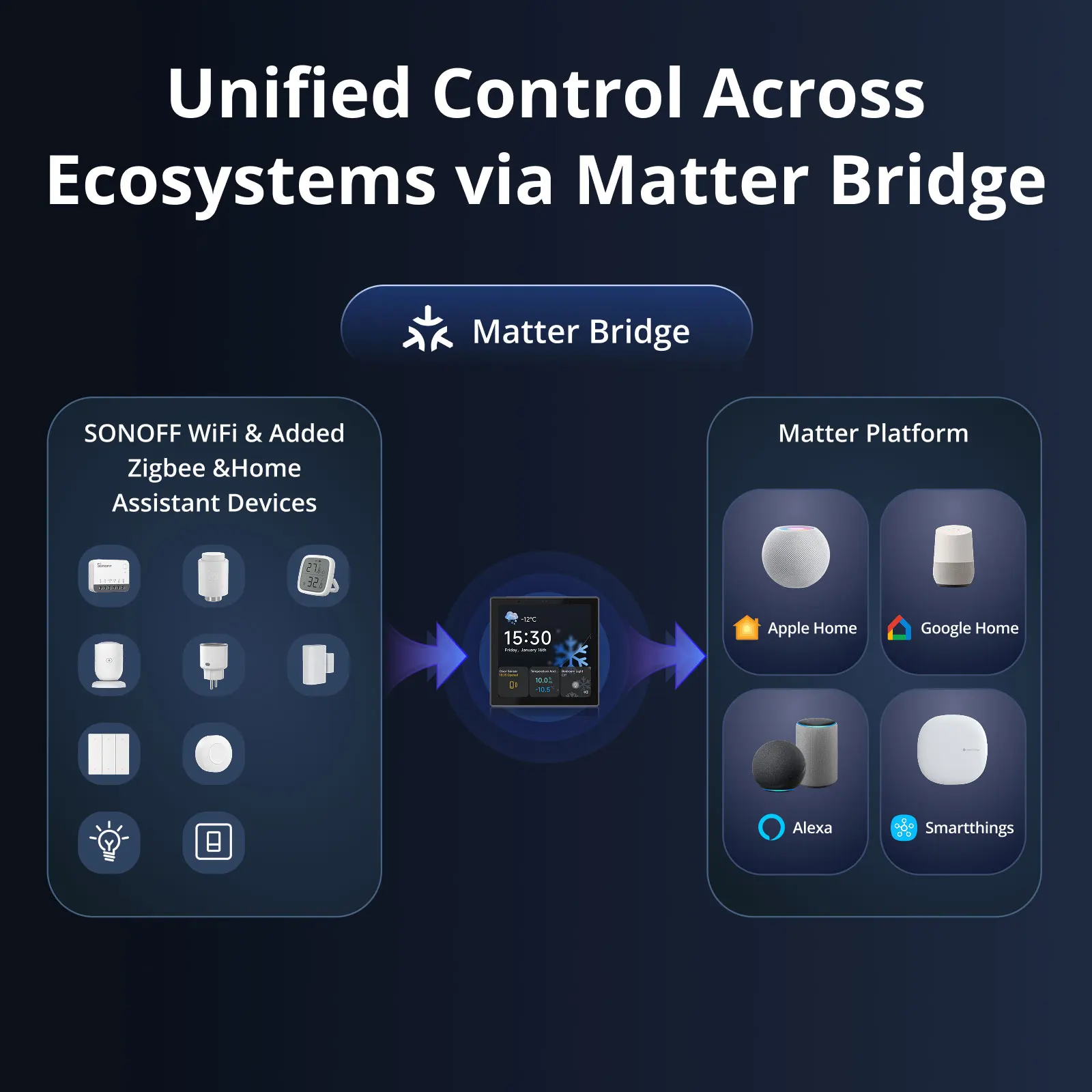

Uniform control across ecosystems by means of Matter-Bridge
By scanning the Matter pairing code, you can synchronize and centrally control both Wi-Fi and Zigbee devices from your eWeLink account and devices from Home Assistant on the Matter platform-for an effortless, seamless connectivity across different ecosystems.

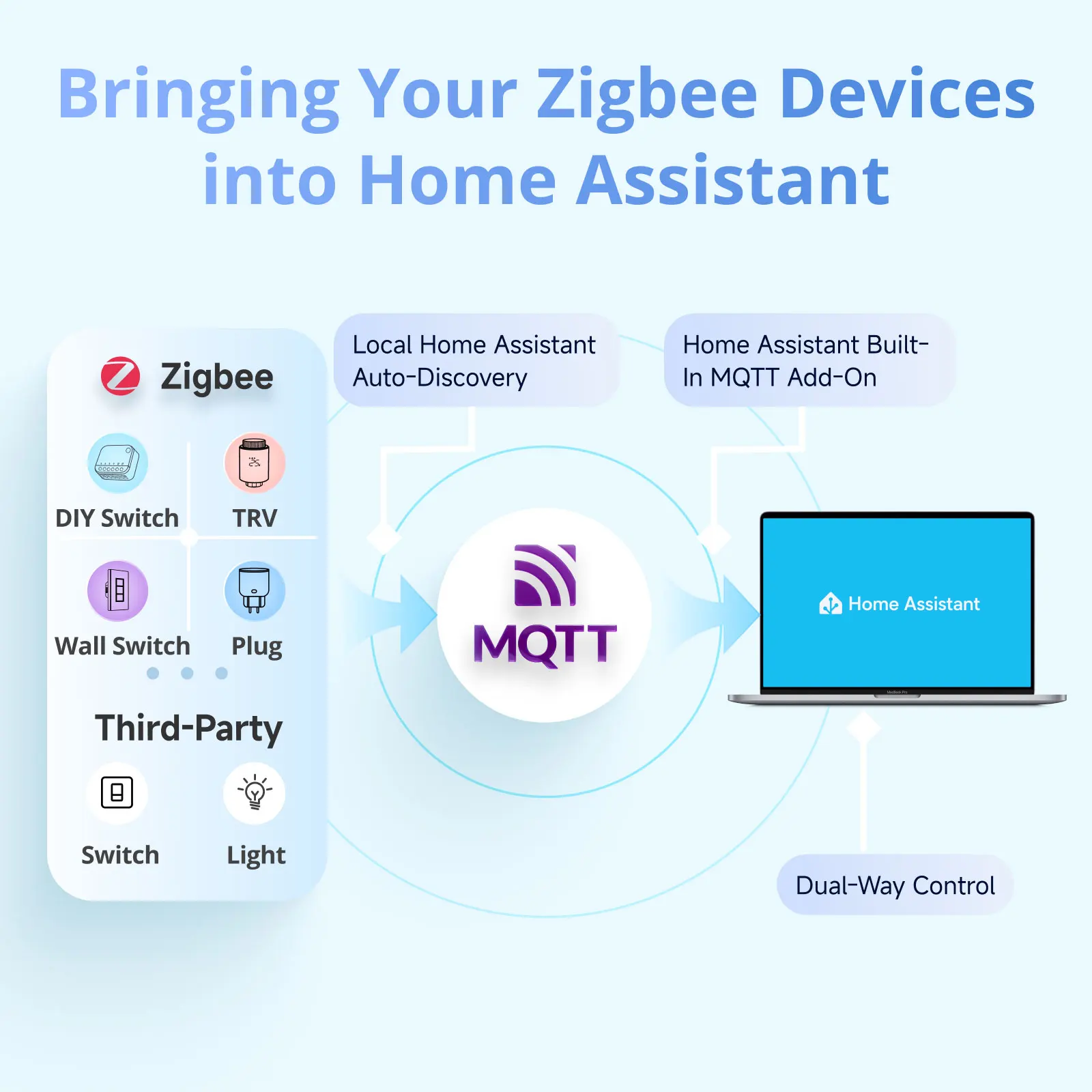

Bring your Zigbee devices to Home Assistant
By scanning the Matter pairing code, you can synchronize and centrally control both Wi-Fi and Zigbee devices from your eWeLink account and devices from Home Assistant on the Matter platform-for an effortless, seamless connectivity across different ecosystems.
Make your smart living easy
F-Droid is a free, open-source app store that offers ad-free and privacy-friendly applications that have been reviewed by the open-source community. With a selection of personalized and creative apps, you can easily enrich your life with the NSPanel Pro Gen2.
Set any third-party app as the Start app.
The Apps feature allows you to set any third-party app as a Home app, while NSPanel Pro Gen2 runs in the background.
Intelligent central temperature control-for an easier life
A single control panel allows continuous monitoring of temperature and heating status in all rooms and controls the heating system of the entire house, to ensure consistent comfort in every area-this creates an ideal living environment through a truly integrated temperature control system for the entire house.

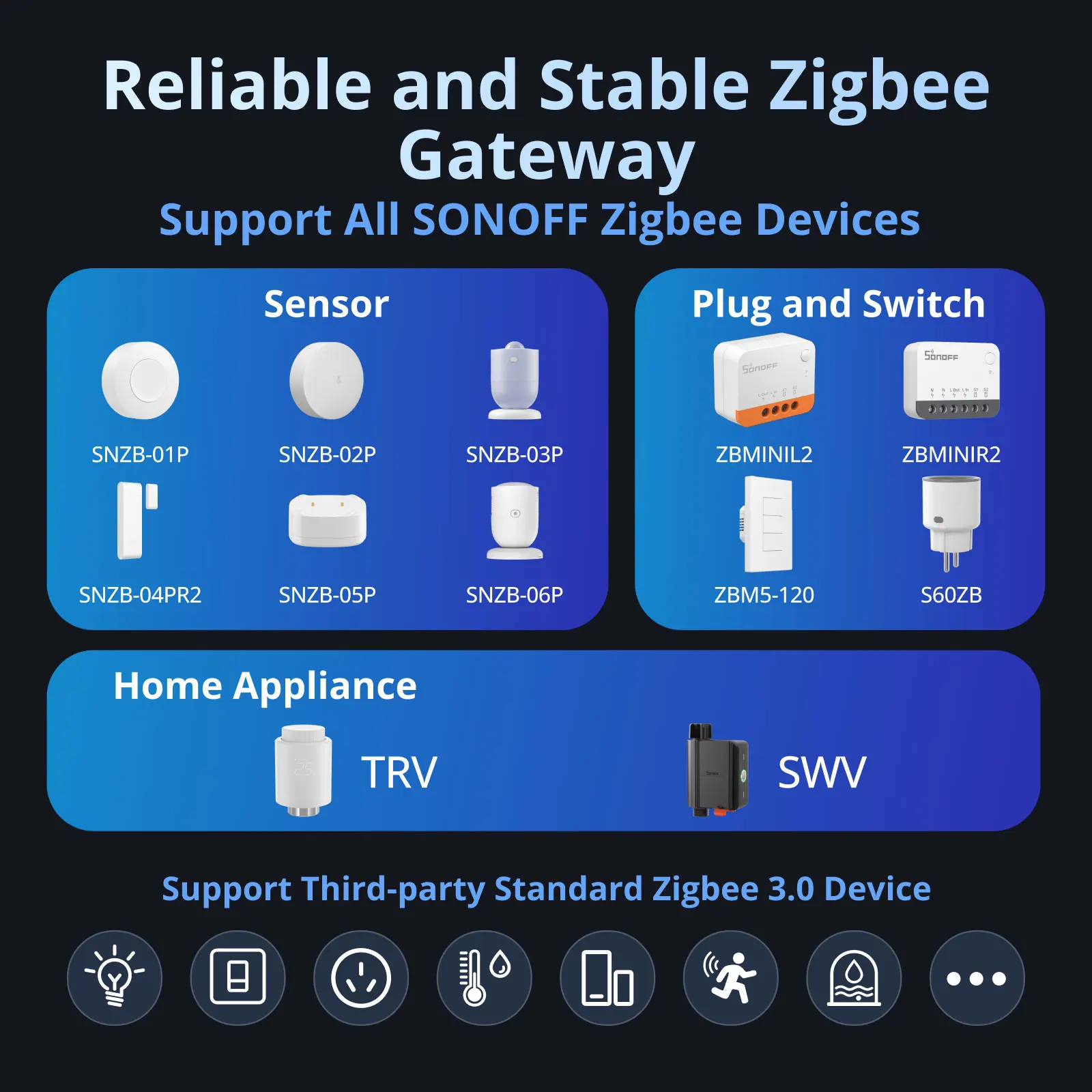

Reliable and stable Zigbee Gateway
Add Zigbee devices quickly and bundled. The standard Zigbee 3.0 protocol provides a more stable connection and longer range. The added sub-devices can be controlled by voice-thanks to compatibility with Alexa, Google Home and other systems.
Zigbee Router Mode
Supports Zigbee router mode for forwarding the Gateway signal to Zigbee sub-devices, increasing the range of the Gateway signal.
* After switching to this mode, adding Zigbee sub-devices and running local scenes is no longer possible.
Discover advanced features on websites
Listen to music, watch videos or find out about the latest tips? Simply save the address to the NSPanel Pro Gen2 under “Webpages”, launch it quickly with just one click and relax at any time.

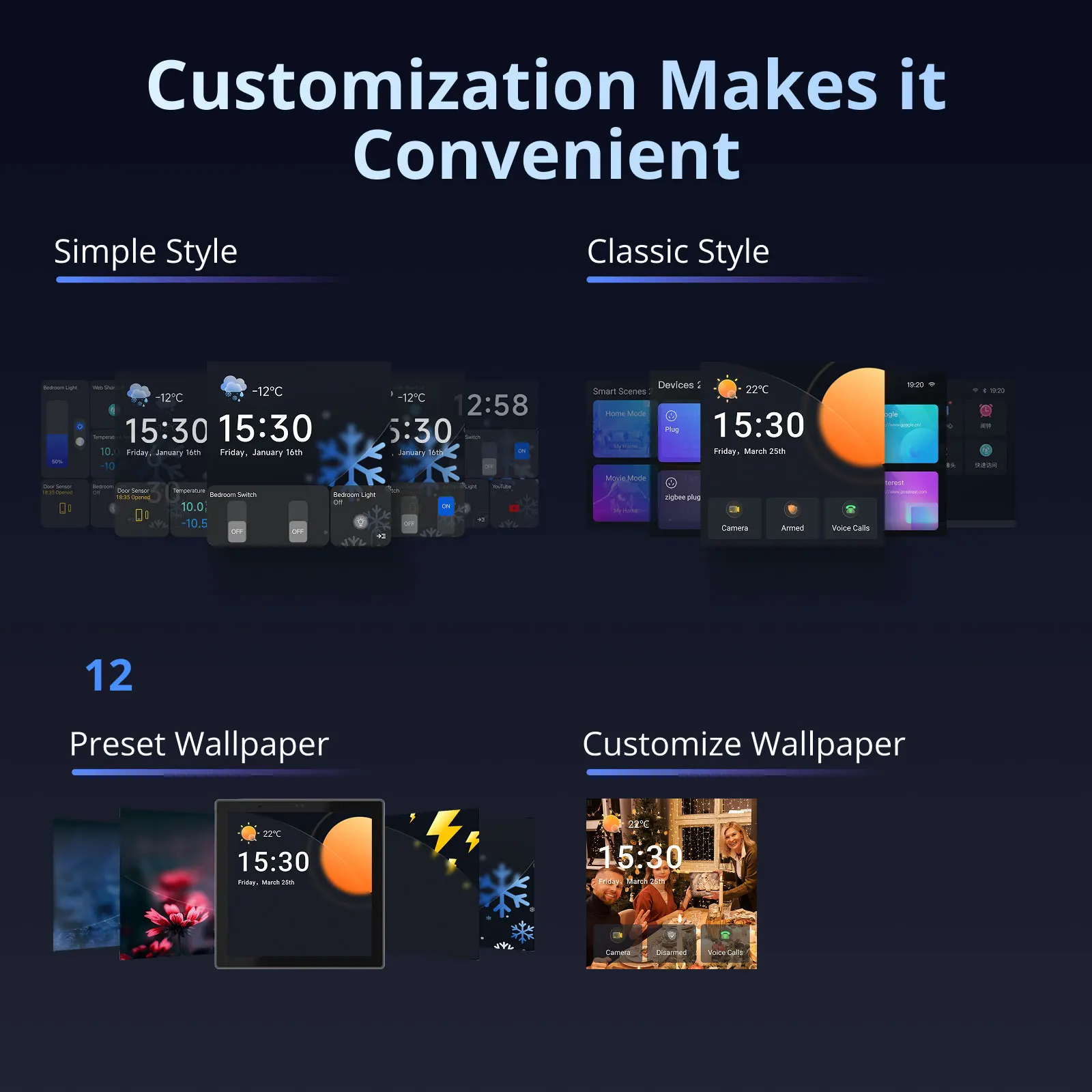

Customization ensures comfort.
You can customize the NSPanel Pro Gen2’s home screen style or background picture as you like, creating an attractive user interface that makes daily use more comfortable.
Customize your home security mode
Adjust three modes by configuring different sharpening options. As soon as the system is armed and the sensor is triggered, the control panel will sound the alarm and you will receive a notification to your phone.
Camera view and conversation
When you visit a smart camera, you can first check the situation via the camera to make sure that everything is in order. In addition, two-way communication is supported, which makes Exchange easier.
Power Consumption
Use smart energy monitoring devices to capture daily consumption.
